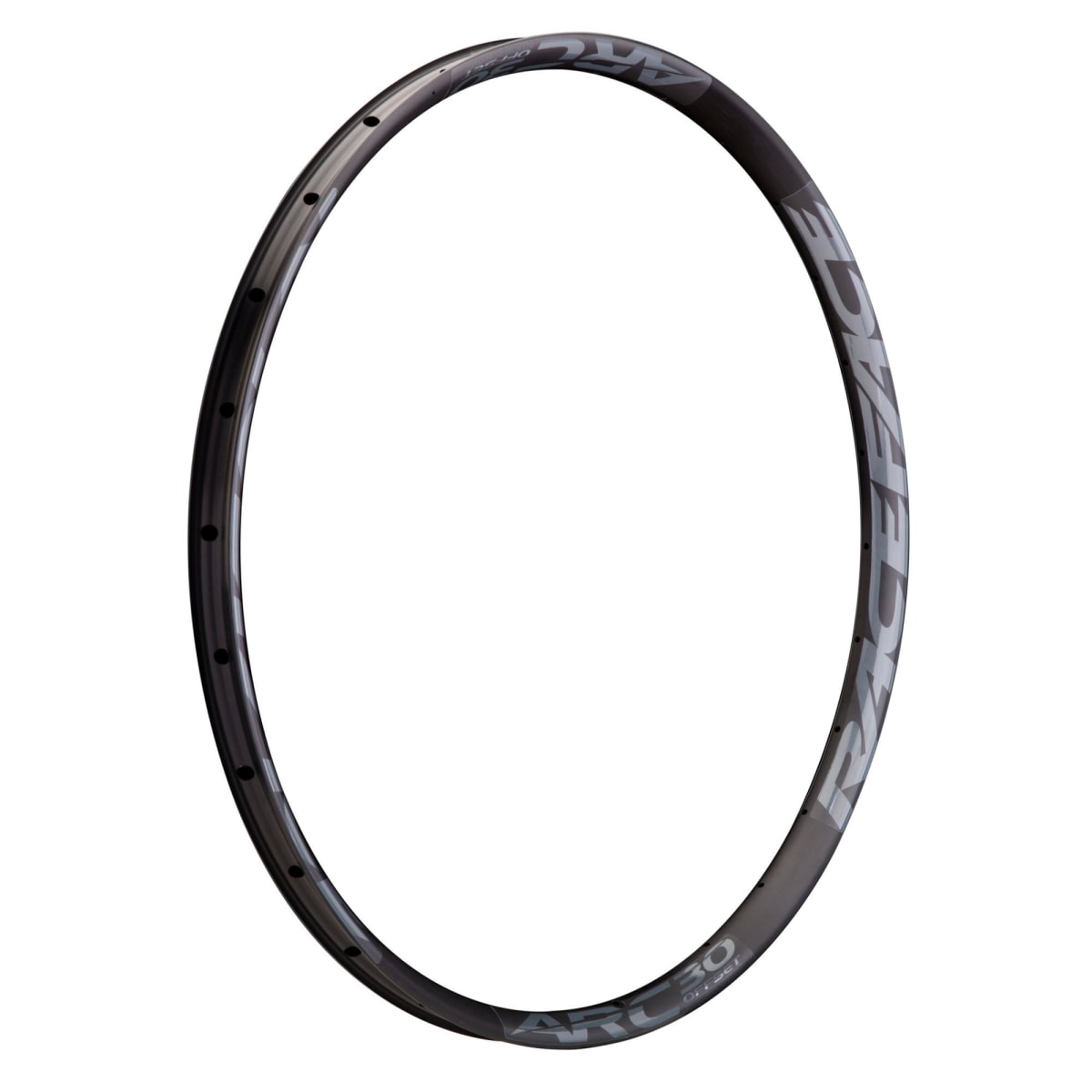

With a redesigned rim profile the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features

Tubeless ready strong tyre retention bead.
Sizes from 25mm to 40mm internal width.

Specification

	27.5"	29"
Rim Weight	25mm - 418g 30mm - 484g 35mm - 520g 40mm - 560g	25mm - 445g 30mm - 525g 35mm - 553g 40mm - 596g
Finish	Brushed Black Anodise / Vinyl Decals	Brushed Black Anodise / Vinyl Decals
Type	Tubeless Ready Clincher (Tape and valve kit sold seperately)	Tubeless Ready Clincher (Tape and valve kit sold seperately)
Rim Material	6069 High Strength Alloy	6069 High Strength Alloy
Rim Depth	20mm	20mm
Rim Offset	4.5mm	4.5mm
Internal Rim Width	25mm 27mm 30mm 35mm 40mm	25mm 27mm 30mm 35mm 40mm
External Rim Width	29mm 31mm 34mm 39mm 44mm	29mm 31mm 34mm 39mm 44mm
Spoke Holes	28 or 32 Hole	28 or 32 Hole
Rim ERD	562mm (25-40mm)	600mm (25-40mm)
Max Spoke Tension	122KGF / 1200N	122KGF / 1200N
