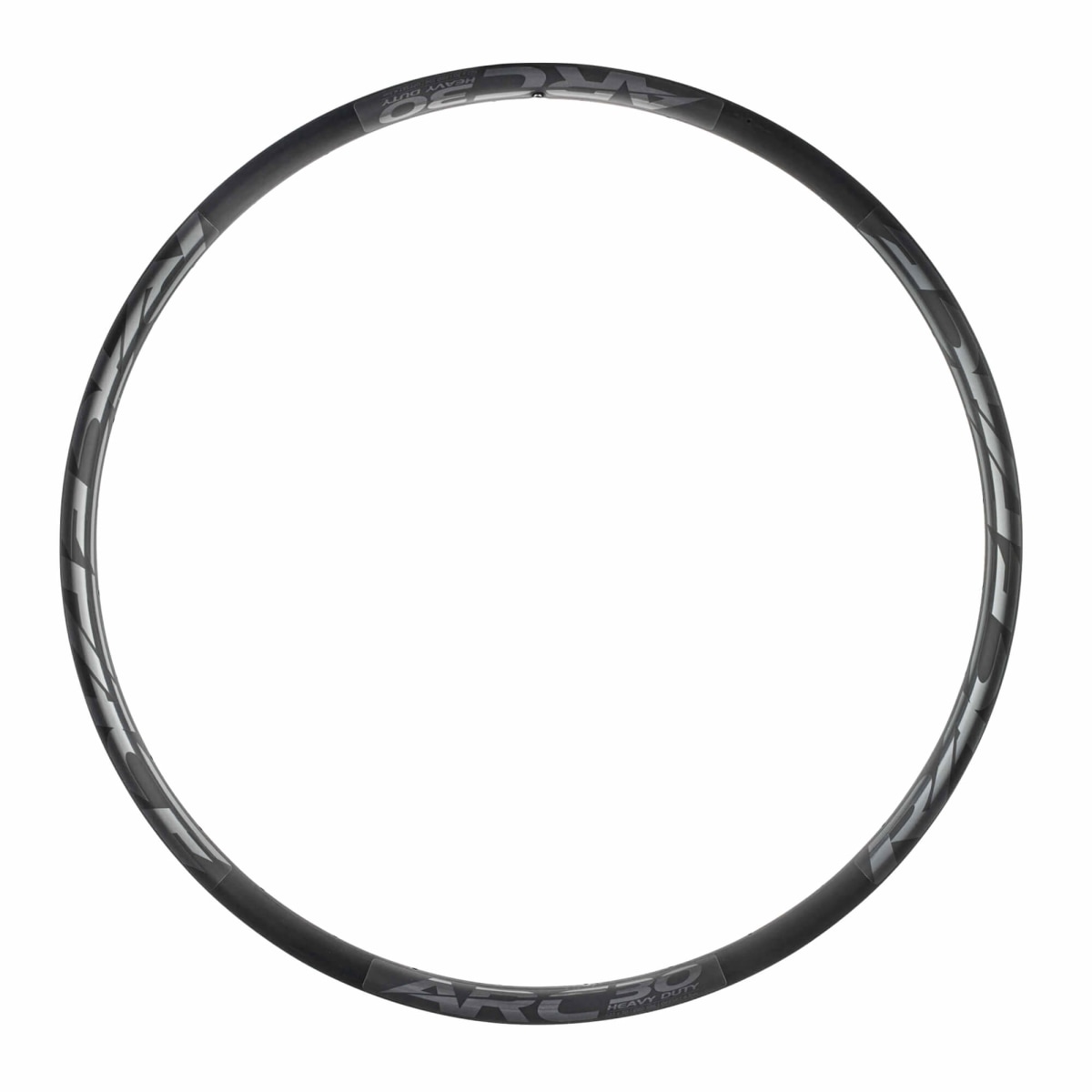

With a redesigned rim profile the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features

Tubeless ready strong tyre retention bead.
New 30mm Heavy Duty for gravity and e-bike applications.

Specification

	27.5"	29"
Rim Weight	30mm Heavy Duty - 555g	30mm Heavy Duty - 591g
Finish	Brushed Black Anodise / Vinyl Decals	Brushed Black Anodise / Vinyl Decals
Type	Tubeless Ready Clincher (Tape and valve kit sold seperately)	Tubeless Ready Clincher (Tape and valve kit sold seperately)
Rim Material	6069 High Strength Alloy	6069 High Strength Alloy
Rim Depth	22mm Heavy Duty	22mm Heavy Duty
Rim Offset	4.5mm	4.5mm
Internal Rim Width	30mm Heavy Duty	30mm Heavy Duty
External Rim Width	34mm Heavy Duty	34mm Heavy Duty
Spoke Holes	32 Hole	32 Hole
Rim ERD	554mm (Heavy Duty)	592mm (Heavy Duty)
Max Spoke Tension	122KGF / 1200N	122KGF / 1200N
