Trek

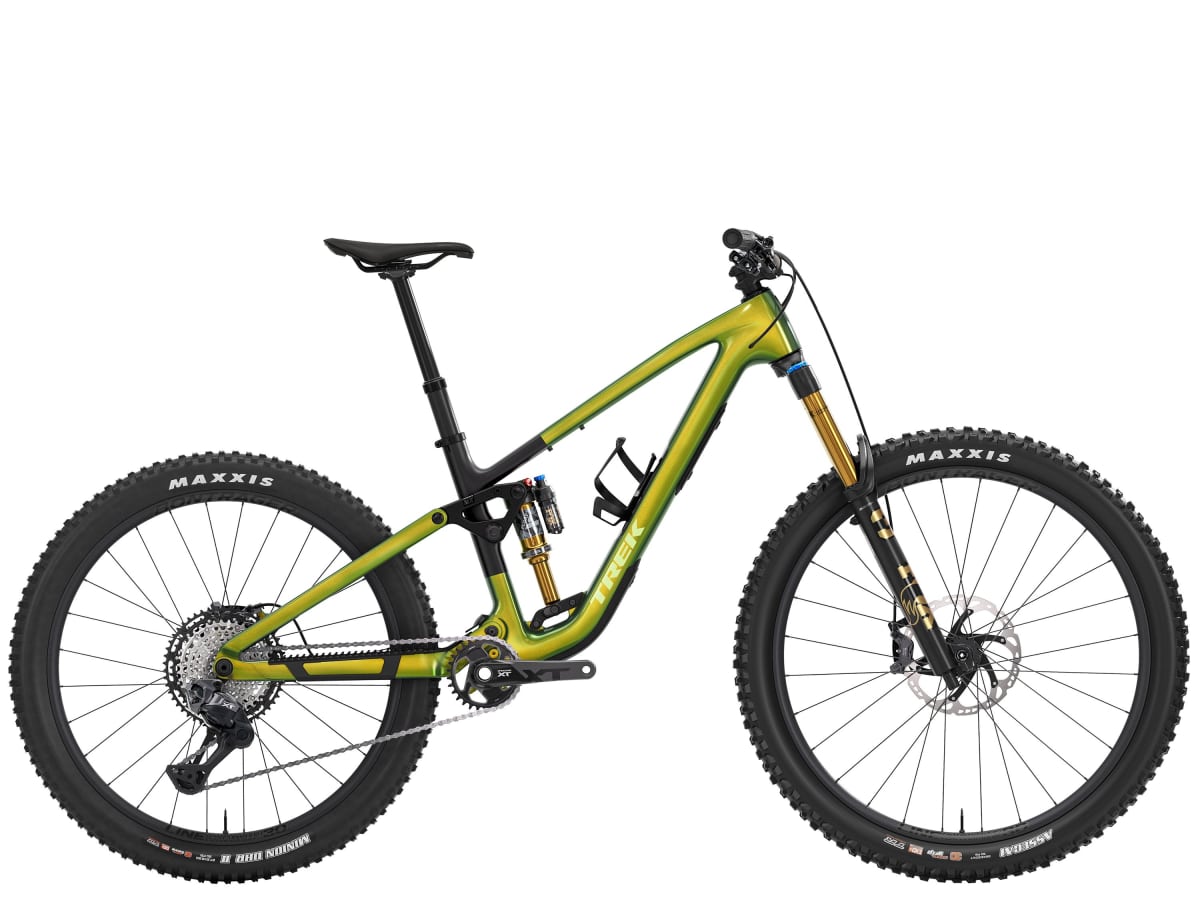

2026 Fuel MX 9.8 XT Di2 Gen 7
£6,275.00Prices include VAT.
Size · S
Colour · GREEN
Out of stock
Currently out of stock.
GTIN 197216272243MPN 5340708
Description
The Fuel MX 9.8 XT Di2 is a chaos-craving carbon trail bike built for hitting bonus features. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for getting wild on the trail. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customisable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.
Specifications
| Frame | Size XXL, OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" |
| Tyres | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Shifter | Shimano XT Di2 M8250, 12-speed Shimano XT Di2 M8250, 12 speed |
| Rear Derailleur | Shimano XT M8250, long cage |
| Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano Ultegra/XT M8100 |
| Front Brake | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size |
| Rear Brake | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Grips | Trek Line Elite, lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Saddle | Verse Short Pro, carbon rails, 145 mm width |
| Weight | 15.09 kg |
