Trek

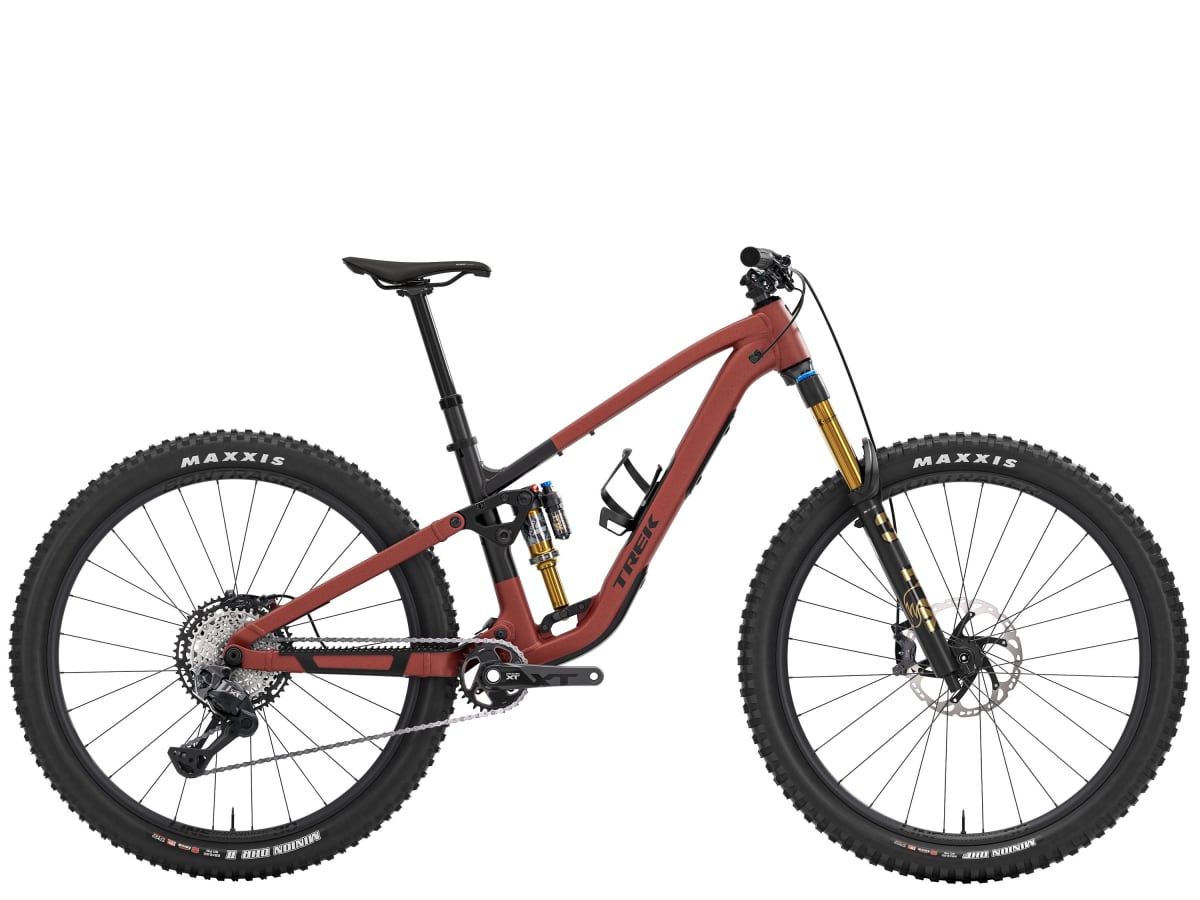

2026 Fuel EX 9 XT Di2 Gen 7
£5,375.00Prices include VAT.
Size · M
Colour · RED
Out of stock
Currently out of stock.
GTIN 197216271437MPN 5340533
Description
The Fuel EX 9 XT Di2 is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminium frame with a Fox Factory suspension package (145 mm rear, 150 mm front) that make quick work of tech and flow alike. Shimano's wireless XT Di2 drivetrain delivers ultra-crisp shifting in a light, robust package, while 4-piston brakes XT M8200 brakes give you the modulation and stopping power you need when things get hairy.
Specifications
| Frame | Size S, Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5" |
| Tyres | Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' |
| Shifter | Shimano XT Di2 M8250, 12-speed Shimano XT Di2 M8250, 12 speed |
| Rear Derailleur | Shimano XT M8250, long cage |
| Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Front Brake | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size |
| Rear Brake | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size |
| Handlebar | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Grips | Trek Line Elite, lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Seatpost | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Weight | 16.88 kg |
