Trek

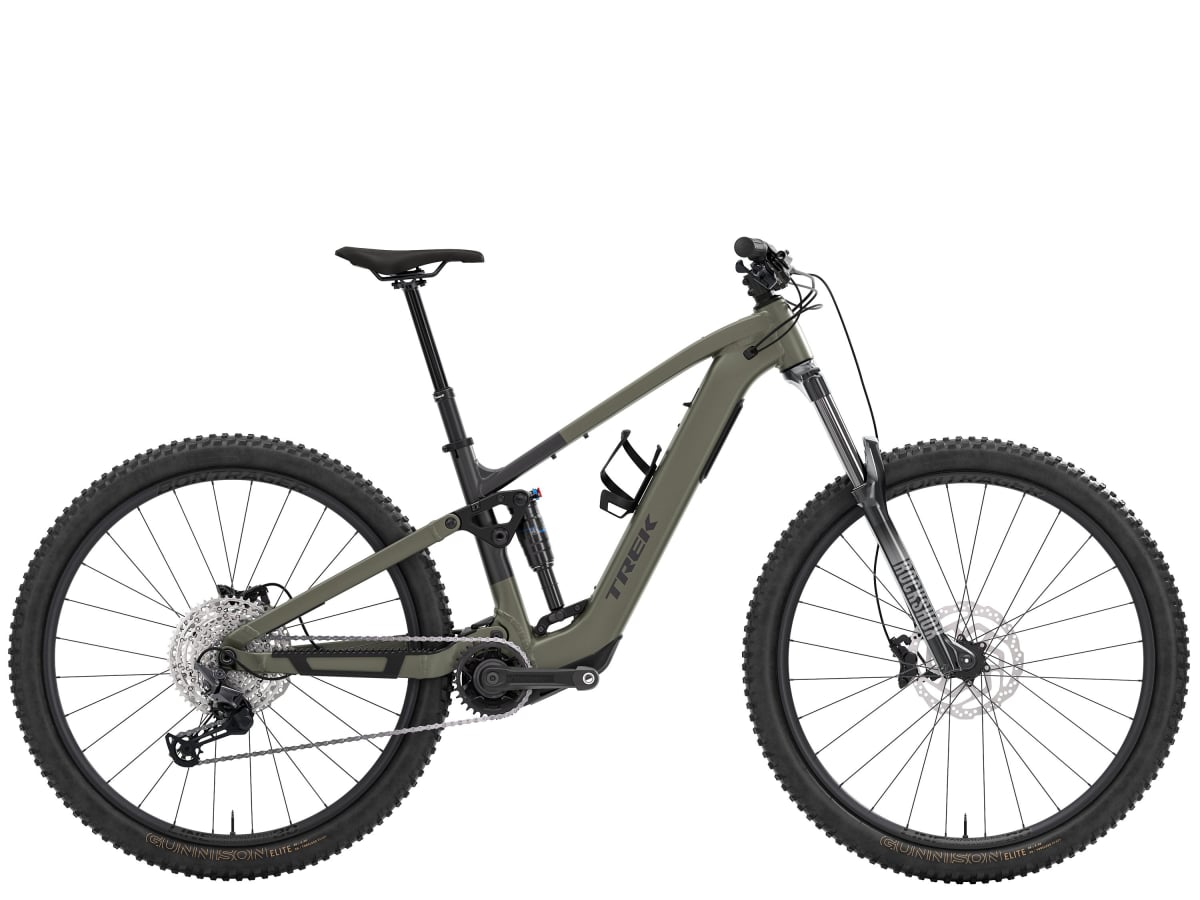

2026 Fuel+ EX 5 Gen 2
£4,400.00Prices include VAT.
Size · M
Colour · OLIVE
Out of stock
Currently out of stock.
GTIN 197216226291MPN 5335647
Description
The Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.
Specifications
| Frame | Size S, Alpha NEXT Platinum aluminum, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve Shimano TC500 alloy, centerlock, 110x15mm thru axle Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Battery | TQ 580Wh |
| Charger | TQ 4A charger |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Shifter | Shimano Deore M6100, 12 speed |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 160mm length |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Front Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper Shimano RT64, centerlock, 203mm // Shimano RT64, centerlock, 203mm Max brake rotor size |
| Rear Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper Shimano RT64, centerlock, 203mm // Shimano RT64, centerlock, 203mm Max brake rotor size |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Seatpost | TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Weight | 21.92 kg |
