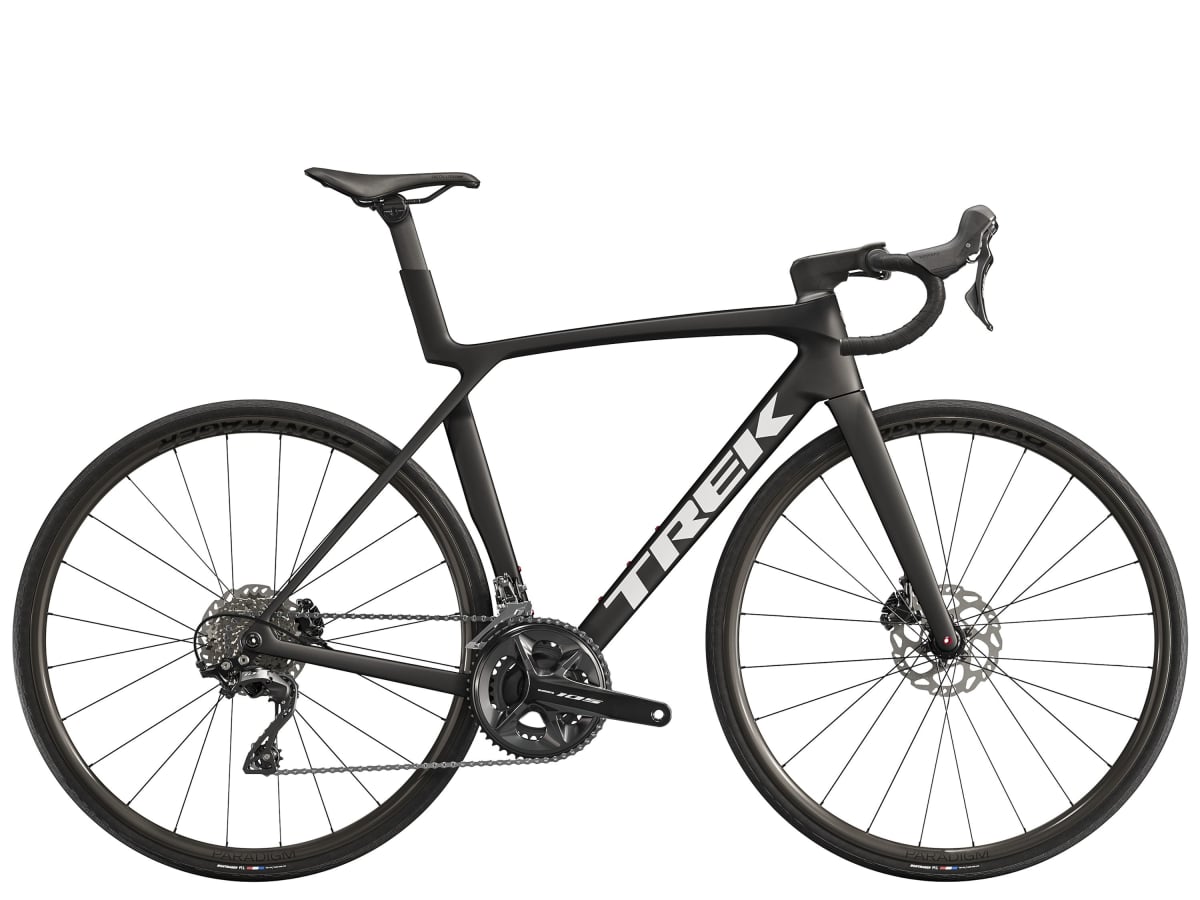

2025 Madone SL 5 Gen 8
Out of stock
Currently out of stock.
Description
The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 group set keeps the price down while still delivering clean mechanical shifting you can trust. You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You're happy with more economical components that help you get on your dream bike faster. An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 group set that delivers clean mechanical shifts without the faff of electronic group sets. Tubeless wheels that help fight punctures while reducing rolling resistance, and hydraulic disc brakes. The Madone SL 5 Gen 8 is the perfect bike for someone looking for superbike performance at a lower price point. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, but with a more economical build that leaves budget to spare for race entry fees and bike trips.
Specifications
| Frame | Size ML, 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x |
| Wheel Size | Front 700c / Rear 700c |
| Wheels | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm |
| Shifter | Shimano 105 R7120, 12-speed // Shimano 105 R7120, 12-speed Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 172.5 mm length // Shimano RS520, 50/34, 172.5 mm length Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Front Brake | Shimano RT70, CentreLock, 160 mm Max brake rotor size |
| Rear Brake | Shimano RT70, CentreLock, 160 mm Max brake rotor size |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| Stem | Trek RCS Pro, -7-degree, 100 mm length |
| Seatpost | Madone aero carbon seat post, 0 mm offset, long length |
| Saddle | Bontrager Aeolus Comp, steel rails, 145 mm width // Verse Short, steel rails, 145 mm width |
| Weight | 8.7 kg |
