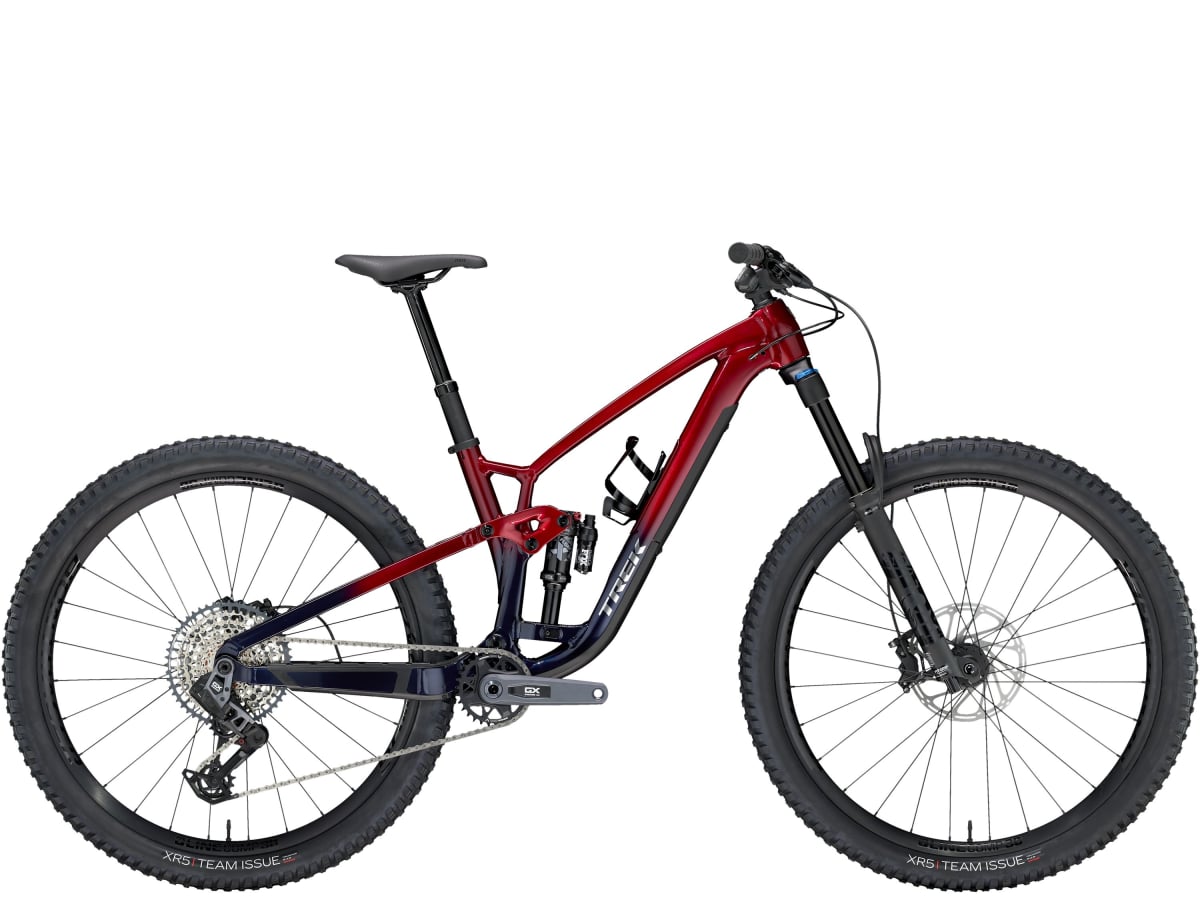

2025 Fuel EX 8 GX AXS T-Type Gen 6
Out of stock
Currently out of stock.
Description
The Fuel EX 8 GX AXS is an evolved trail bike, dialled for riders who chase down rowdy descents and want a bike that's happy to pedal back to the top and do it again. The lightweight alloy frame pairs with an upgraded electronic wireless 12-speed SRAM GX Eagle transmission, while a 150 mm FOX Rhythm fork cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that come with the carbon model, but without the lofty price tag. You want a full-suspension trail bike that floats over rough and technical terrain and packs in plusses, like a root-slaying FOX Rhythm fork and tubeless hoops. A light and stiff alloy frame with 150 mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. SRAM's latest wireless GX Eagle AXS 12-speed transmission for snappy shifting and Tubeless-Ready Bontrager wheels. Plus, adjustable geometry that lets you take control of your set-up. For the rider who doesn't want to be limited on the trail, the Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.
Specifications
| Frame | Size S, Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel Alp |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5" |
| Tyres | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50" |
| Shifter | SRAM AXS POD SRAM AXS POD |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Front Brake | SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 180 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size |
| Rear Brake | SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 180 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 35 mm length |
| Seatpost | TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Verse P3, chromoly rails // Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Weight | 15.88 kg |
